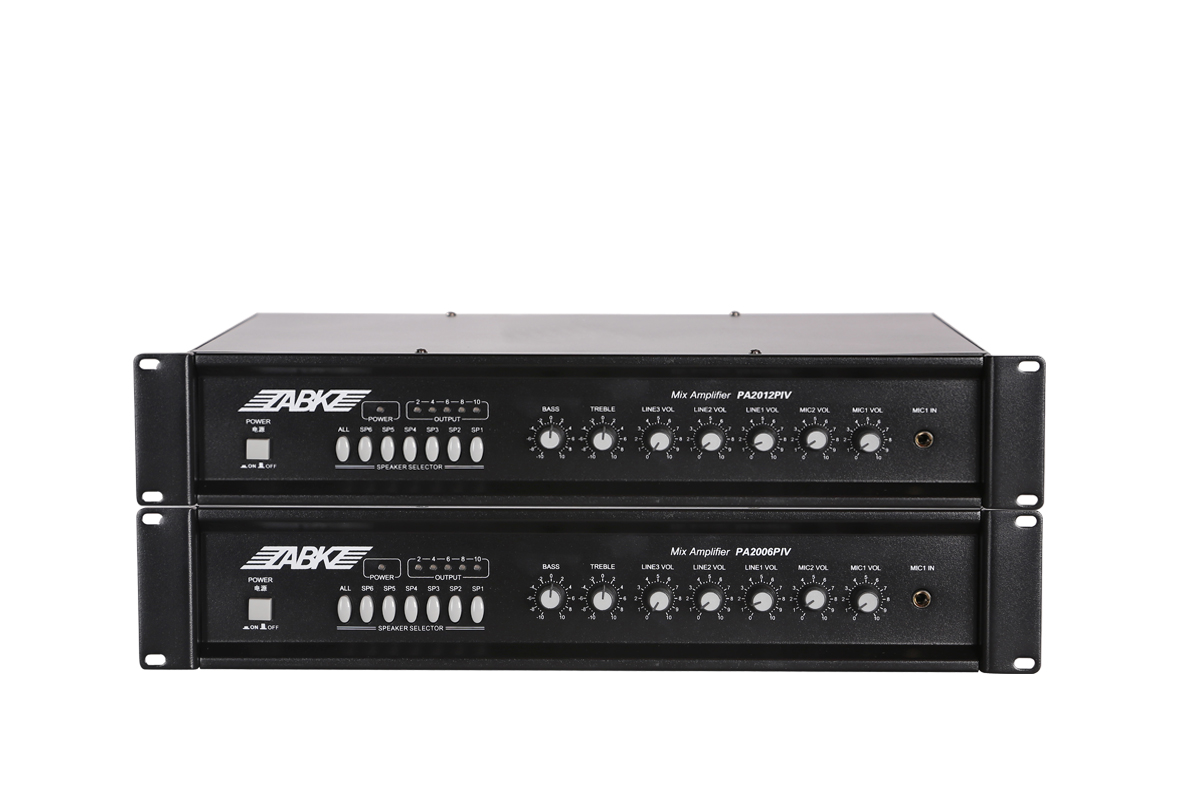

PA20IV Series 6 Zones Mixing Amplifier
左滚动
  • PA20IV Series 6 Zones Mixing Amplifier
右滚动
  • PA20IV Series 6 Zones Mixing Amplifier
● Two microphone inputs, three Line inputs, and one Line output for link.
● Transform the output into 6 zones.
● Muting function.
● Individual volume control.
● Bass and treble tone control.
● A five-element LED level meter is provided for the quick and easy visual monitoring of sound level.
● The protection and alarm in case of output short-circuit.

Description
PA200 series is 6 zone mixer amplifier with new circuit design and its rated power is 60W/120W. It has 2 microphone inputs and 3 aux inputs. Mic1 has priority over other inputs.Individual gain controls are provided for Microphone and aux; bass and treble controls and master volume control are available.
Its 6 zone selectors provide a direct control interface to users for easy control and zone paging. The alarm button will automatically activate the pre-recorded message 3 over other aux inputs.
Extensive protection are provided for indicators from short-circuit, overload, high temp, AC fuse and DC voltage .Intelligent variable frequency and cooling system to ensure extreme quite sound system.Mute function, easy to override with the priority broadcast; 100V transmission voltage; bass and treble tone can be controlled individually.
Combine pre-amp, power –amp and zoning, suit for mid and small public address system, like super market, restaurant,and coffee shop.

Specifications

   Model

PA2006PIV PA2012IV

   Rated output

60W / 120W

 Output regulation

Less than 3dB

  Speaker output

100V

AUX output

1V

Input Sensitivity

Mic1,2,    3mV  unbalanced

Line 1,2,3,  300mV  unbalanced

 Frequency response

65Hz-20kHz (±3dB)

  The ratio of signal to noise ratio
Distortion

Less than 0.3%  at 1kHz , 1/3 rated power



Mic1 and 2  :   Bigger than 80dB



Line 1、2 and 3  Bigger than 80dB

Tone

Bass :  ±10dB at 100Hz

Treble: ±10dB at 10kHz

     Protection

AC fuse; DC voltage; overload; short-circuit.

  Muting function

Mic1 overrides other input signals with

0 ~ -30dB attenuation

      Power requirements

AC 220-240V/50-60Hz

      Power  consumption

120W

    Dimensions

485×340×88mm

   Gross weight

8.5kg

    Net weight

7.2kg
