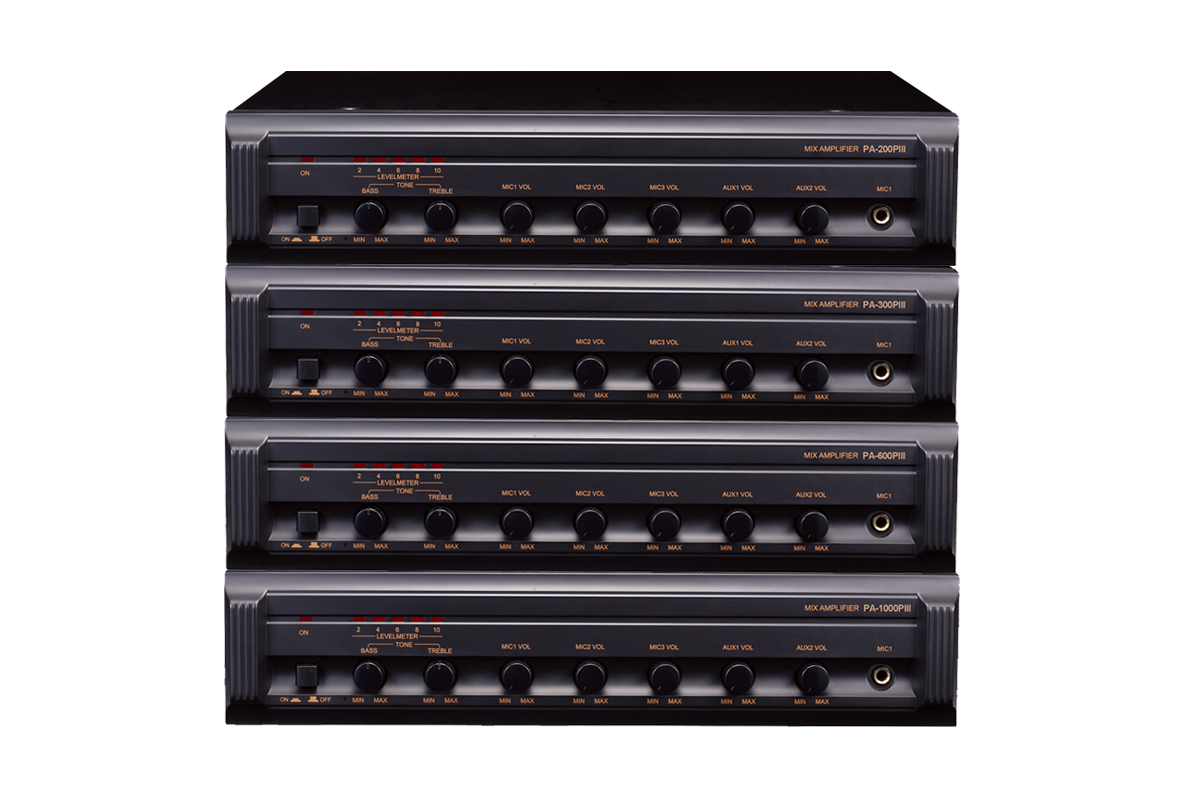

- PA PIII Series 60W-350W 3 Mic 2 AUX Mixer Amplifier
● 3 microphone inputs, Mic 1 with priority and muting function
● 2 aux line input &1 line output for additional mixer or amplifier link
● Individual volume control for each microphone and line input
Description
PA PIII economy mixer amplifier is rated at 60W-350W. It has 3 microphone inputs and 2 aux inputs, and Mic 1 is provided with priority and muting function. Bass and treble controls and master volume control are provided. Complete protection includes short circuit and thermal protection, current limiter and overloading.
This amplifier can be applied to different cases, such as supermarket, classroom, etc.
Specification
|
Model |
PA200PIII |
PA300PIII |
PA600PIII |
PA1000PIII |
|
Rated output |
60W |
120W |
250W |
350W |
|
Speaker output |
P1, 70V, 100V |
|||
|
AUX output |
≥1V |
|||
|
Input sensitivity |
Mic1,2,3 : 600Ω, ≤3mV, unbalanced |
|||
|
AUX1,2 : 10kΩ, ≤300mV, unbalanced |
||||
|
Frequency response |
50Hz -16kHz (±3dB) |
|||
|
Distortion |
< 1% at 1kHz , 1/3rated output voltage |
|||
|
The ratio of signal to noise |
Mic1,2 and 3 : >75dB; AUX1 and 2 : > 80dB |
|||
|
Power requirements |
AC 220V-240V/50Hz-60Hz |
|||
|
Power consumption |
120W |
250W |
500W |
650W |
|
Outer Packing Size (mm) |
(L×W×H)520×430×195 |
|||
|
Unit Size (mm) |
(L×W×H)420×338×88 |
|||
|
Gross weight |
10.3kg |
10.8kg |
14.8kg |
15.2kg |
|
Net weight |
8.5kg |
9kg |
13kg |
13.4kg |
