- AXT1608R

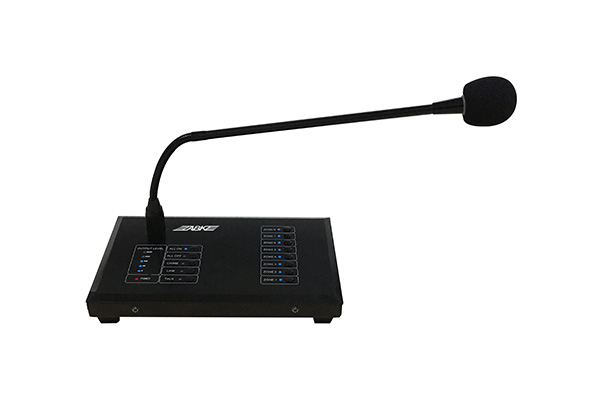

- AXT1608R 8 Zones Remote Paging Microphone
Clear signal level indication
Built-in 2 kinds of chime signal
Adjustable volume of MIC and chime
Adopts D626 goose-neck microphone
Adopts RJ45 interface for MIC connection, support cascade linkage
Description:
AXT1608R is remote paging MIC equipped for AXT1608 Digital Audio Matrix Public Address System. It is a remote paging MIC, each MIC can control 8 zones. Each zone can realize independent control or one key switch and it support multi-level extension.
Specification:
Model
AXT1608R
Power
～220V/50Hz
MIC1 input sensitivity
45±5 mV
2000±100 mV
Net
port output voltage(Balance）
2000±100 mV
Chime
rated output level
≤1000 mV
MIC
frequency response
100Hz～15kHz（±3dB）
Noise
<1.5mV
Distortion
<0.5% 1KHz
AC power
AC220V
Machine
Size(L×W×H)
231.5mm×145.5mm×67.5mm
Packing
Size(L×W×H)
282mm×200mm×264mm (1PS)
Gross
Weigh
1.75Kg
Net Weigh
2.0Kg
(1PS)
